Original Article

Elevated NDC1 expression predicts poor prognosis and correlates with immunity in hepatocellular carcinoma

Qingqing Liu1,2#, Liugen Gu1,2#, Jianwei Qiu1,2, Junbo Qian1,2

1Department of Gastroenterology, The Second Affiliated Hospital of Nantong University, Nantong, China; 2Department of Gastroenterology, The First People’s Hospital of Nantong, Nantong, China

Contributions: (I) Conception and design: Q Liu; (II) Administrative support: J Qian; (III) Provision of study materials or patients: J Qiu; (IV) Collection and assembly of data: L Gu; (V) Data analysis and interpretation: Q Liu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Junbo Qian; Jianwei Qiu. Department of Gastroenterology, The Second Affiliated Hospital of Nantong University, Nantong 226001, Jiangsu, China; Department of Gastroenterology, The First People’s Hospital of Nantong, Nantong 226001, Jiangsu, China. Email: ntyyqjb@126.com; ntyyqjw@163.com.

Background: NDC1 was identified to be a tumor-promoting factor in non-small cell lung cancer and cervical cancer. However, no report had clarified the relationship between NDC1 and hepatocellular carcinoma (HCC). In this paper, we explored the expression and potential functions of NDC1 in HCC for the first time through the rational application of bioinformatics and relevant basic experiments.

Methods: NDC1-related expression profiles and clinical data of HCC patients were collected from The Cancer Genome Atlas (TCGA) database, which were verified via quantitative real-time polymerase chain reaction (qRT-PCR), immunohistochemistry and the Clinical Proteomic Tumor Analysis Consortium (CPTAC) database. Univariate and multivariate Cox regression analyses were used to identify NDC1 as an independent factor for HCC prognosis, and NDC1-related signaling pathways were determined by gene set enrichment analysis (GSEA). Furthermore, we deeply probed the potential links of NDC1 to immunity and immune response. Finally, the bioeffects and underlying mechanisms of ectopic NDC1 overexpression and depletion were determined in HepG2 cells by immunoblotting, flow cytometry, Cell-Counting-Kit-8 (CCK-8), and EDU (5-Ethynyl-2’-deoxyuridine).

Results: Up-regulated expression of NDC1 was detected by means of the TCGA database, which was consistent with the results obtained from further qRT-PCR, immunohistochemistry and the CPTAC database. Kaplan-Meier (K-M) survival analysis revealed a worse prognosis in HCC patients with high NDC1 expression. Besides, NDC1 was certified to be closely linked to tumor histologic grade, clinical stage and T stage. Moreover, univariate and multivariate Cox regression analyses defined NDC1 as an independent element for HCC prognosis. NDC1-related signaling pathways, utilizing GSEA analysis, were subsequently found out. What’s more, NDC1 expression was detected to be enormously associated with microsatellite instability (MSI), immune cell infiltration, immune checkpoint molecules and immune cell pathways. As for immunotherapy, we discovered that different risk groups tended to have different immune checkpoint inhibitor responses, which indicated crucial implication value of NDC1 for HCC immunotherapy. More interestingly, we observed that the overexpression of NDC1 could promote the migration and invasion of HCC cells.

Conclusions: Our article demonstrated that NDC1 might serve as a valuable predictor in the prognosis and immunotherapy of HCC. NDC1 played an oncogenic role in HCC.

Keywords: NDC1; prognosis; immunity; hepatocellular carcinoma (HCC)

Submitted Oct 25, 2022. Accepted for publication Feb 02, 2023. Published online Feb 28, 2023.

doi: 10.21037/jgo-22-1166

Highlight box

Key findings

• We first predicted the prognostic and immunological value of NDC1 in HCC.

What is known and what is new?

• NDC1 played an important role in tumor progression, including reported cases of non-small cell lung cancer and cervical cancer.

• We investigated the relationship between NDC1 and HCC for the first time, which was completely new.

What is the implication, and what should change now?

• This provides new biomarkers and possible potential therapeutic targets for better prediction and treatment of HCC. On the basis of bioinformatics analysis and previous experiments, we need to further explore the biological role of NDC1 in vivo, which requires deeper demonstration in the future.


Hepatocellular carcinoma (HCC) is one of the most common abdominal malignancies, accounting for 91.5% of primary liver cancers, and ranks sixth in terms of incidence and third in terms of mortality among all malignant tumors worldwide (1,2). Due to its insidious onset and the lack of typical symptoms in the early stage, most HCC patients have already developed to the middle or even advanced stage at the initial diagnosis. For these patients, there is no opportunity for surgical intervention and the treatment prospects are slim (3). Therefore, finding reliable biomarkers for the early diagnosis of HCC is crucial, so that a series of treatment measures such as surgery or chemotherapy can be employed in time to prolong the survival time of patients (4,5).

NDC1, also known as TMEM48, is the most conserved membrane nucleoporin localized to the nuclear pore complex (NPC), playing a crucial role in NPC and nuclear envelope (NE) assembly (6). The integrity of NE and correct nucleocytoplasmic transport are important for many cellular processes, including genome stability, DNA replication, DNA damage, DNA repair, and cell death (7). Notably, abnormal expression of nucleoporin has been reported to exert a critical impact on the progression of various cancers (8-11). Nonetheless, the expression pattern and underlining mechanisms of NDC1 in HCC have been rarely known.

Therefore, this study was conducted to explore the potential functions of NDC1 in HCC using proper bioinformatics and experiments. Firstly, we elucidated a remarkably elevated NDC1 expression in HCC and also identified a closer relationship with poor prognosis in the up-regulated NDC1 group. Moreover, NDC1 was confirmed as an independent prognostic factor for HCC via univariate and multivariate Cox regression analyses, and NDC1-related signaling pathways were simultaneously determined through gene set enrichment analysis (GSEA) analysis. Furthermore, we evaluated the immune correlations of NDC1 expression in HCC and validated the relationship between NDC1 and immunotherapy for the first time. Finally, we conducted in vitro experiments through overexpression and small interfering RNA (siRNA) interference, which consistently determined the crucial roles of NDC1 in cell proliferation, migration, and invasion of HCC cells. Collectively, these facts strongly suggested that NDC1 might serve as an essential role in predicting HCC prognosis and immunotherapy. We can say that NDC1 plays a carcinogenic role in HCC. We present the following article in accordance with the MDAR reporting checklist (available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-1166/rc).


Data gathering and processing in The Cancer Genome Atlas (TCGA) database

We utilized the TCGA (https://tcga-data.nci.nih.gov/tcga/) database to obtain the RNA sequencing results and relevant clinical data of 374 cases of HCC and 50 cases of adjacent normal tissues. All data were standardized using R software (https://www.r-project.org/). In addition, differentially expressed genes (DEGs) were determined by using the “Limma” R package, with the cutoff criteria of adjusted P values (false discovery rate; FDR) <0.05 and |log2 fold change (FC)| ≥1 (12-14).

Patients and tissue samples

We collected 8 pairs of HCC tissues and adjacent non-cancerous tissues from 2021 inpatients in the Department of Hepatobiliary Surgery, The Second Affiliated Hospital of Nantong University. None of the patients had received radiotherapy, chemotherapy, or other adjuvant therapy before surgery. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Ethics Committee of The Second Affiliated Hospital of Nantong University (No. 2022KT244) and informed consent was taken from all the patients. Once isolated, the tissue samples were quickly frozen in liquid nitrogen and stored at −80 ℃ for later use.

Cell lines and cell culture

We purchased human HCC cell lines (SMMC-7721, Hep3B, SK-Hep1, HepG2) and a human normal hepatocyte cell line (QSG-7701) to perform the experiments. We used DMEM (Dulbecco’s modified Eagle’s medium) which was supplemented with 10% fetal bovine serum (FBS), 100 µg/mL streptomycin, and 100 units/mL penicillin to grow the cells and all cell lines were incubated in a 37 ℃ and 5% CO2 incubator.

Quantitative real-time polymerase chain reaction (qRT-PCR)

Trizol RNA isolation reagent (Ambion, Austin, TX, USA) was used to extract total RNA from the HCC tissues and cell lines. Then we took advantage of the first-strand cDNA synthesis kit (Vazyme, Nanjing, China) to reverse transcribe the RNA into cDNA. QRT-PCR was performed using the resulting cDNAs (1 µL) on the ABI QuantStudio5 Real-Time PCR System (Thermo Fisher Scientific, USA) with the measurement of Fast SYBR® Green Master Mix (Servicebio, China) and calculated by the 2-ΔΔCt method. The following primers were used (synthesized by Sangon, based in Shanghai, China): NDC1 (F: 5'-GCTGCTGTCAGTGGTAATAA -3'; R: 5'- GCAGGGAACCACAAGAAC -3') and GAPDH (glyceraldehyde-3-phosphate dehydrogenase) (F: 5'- CAGGAGGCATTGCTGATGAT -3'; R: 5'- GAAGGCTGGGGCTCATTT -3').

The Human Protein Atlas (HPA) and Clinical Proteomic Tumor Analysis Consortium (CPTAC) databases

NDC1 protein expression in HCC via immunohistochemical staining was determined by searching the online HPA (http://www.proteinatlas.org/) database. Furthermore, the statistical differences in NDC1 expression in HCC tissues and non-cancerous normal tissues were determined using the CPTAC database, and the relationship between NDC1 and gender in HCC was also explored.

Univariate and multivariate Cox regression analyses

Univariate and multivariate Cox regression analyses were applied to further investigate whether NDC1 and other clinical parameters (tumor grade, pathological stage, age, gender, race, and T, N, and M stages) were independent factors related to the overall survival (OS) of HCC patients.

GSEA analysis of NDC1

To better understand the possible biological functions of NDC1 in HCC, we employed GSEA to probe the crucial signaling pathways of NDC1 using normalized RNA-sequencing data obtained from TCGA, with the threshold of the normalized enrichment score (NSE) >1.5 and a nominal P value <0.05 (15).

Protein-protein interaction (PPI) network and Sangerbox website tools

A PPI network was constructed using the STRING (https://string-db.org/) database to identify the potential NDC1-related genes (16). Meanwhile, the Sangerbox website tools (http://www.sangerbox.com/tool), which is a free online platform, were applied to study the relationships between NDC1 and tumor neoantigen burden (TNB), tumor mutational burden (TMB), microsatellite instability (MSI), immune cell infiltration, tumor microenvironment, immune checkpoint molecules, and immune cell pathways via the Spearman or Pearson methods. This was subsequently visualized using the R package, and P<0.01 was set as the cutoff threshold (17-20).

Alteration analysis of NDC1

We used the cBioPortal database for cancer genomics (http://cbioportal.org) to verify the frequency and mutation site of NDC1 in HCC (21).

Prediction of NDC1 expression in response to immunotherapy

The response of NDC1 to immunotherapy was predicted by utilizing the The Cancer Imaging Archive (TCIA) databases. Data processing and graphing were performed using the “ggpubr”, “limma”, and “impute” R/Bioconductor packages.

Western blotting

Total protein, extracted from tissues or cells, was lysed in RIPA lysis buffer (Radio Immunoprecipitation Assay), which was composed of 50 mM NaCl, 0.1% Tween-20, 150 mM Tris-HCl, 1% NP-40 and a freshly added protease inhibitor cocktail (Sigma, USA). Before gel electrophoresis, the total protein concentration was determined with a Bio-Rad protein assay (BioRad, Hercules, CA, USA). An equal amount of protein was separated by 10% SDS-PAGE (Sodium Dodecyl Sulfate PolyAcrylamide Gel Electrophoresis) and transferred onto polyvinylidene fluoride (PVDF) membranes (Immobilon, Millipore). After blocking for 2 h in 5% dried skim milk in Tris Buffer Solution Tween (TBST) at room temperature, the membranes were then incubated overnight with primary antibodies against NDC1 (1:1,000, Thermo Fisher Scientific, USA), Proliferating Cell Nuclear Antigen (PCNA) (1:1,000, Proteintech, Wuhan, China), E-cadherin (1:1,000, Cell Signaling, USA), vimentin (1:1,000, Cell Signaling), and GAPDH (1:5,000, Proteintech, Wuhan, China). After incubating with an anti-rabbit/mouse immunoglobulin G (IgG) (Thermo Fisher Scientific) and a horseradish peroxidase-conjugated secondary antibody, the protein was visualized by enhanced chemiluminescence (ECL) (Thermo Fisher Scientific).

EDU (5-Ethynyl-2’-deoxyuridine) incorporation assay

The EDU cell proliferation detection kit was purchased from RiboBio Biotechnology Co., LTD (Guangzhou, China) and the experiment was carried out according to the manufacturer’s instructions. Briefly, the HepG2 cells were incubated with 50 µM EDU for 2 h. Before the cells were stained with EDU and the cell nuclei were counterstained with Hoechst 33342, they needed to be fixed in 4% paraformaldehyde and permeated in 0.5% Triton X-100. EDU-positive nuclei were detected by the fluorescence microscope (Leica, Germany). We calculated the cell proliferation rate according to the proportion of nucleated cells incorporating EDU in five high-power fields per well.

Cell-Counting-Kit-8 (CCK-8) assay

Cell viability was measured using the CCK-8 kit obtained from Vazyme. In brief, HepG2 cells were seeded on 96-well plates at a concentration of 2×104/well and grew overnight. Before detection, 10 µL aliquot of CCK-8 was added into each well under different treatments and the cells were incubated at 37 ℃ for 2 h. The absorbance was measured at 450 nm by using the automated microplate reader (Bio-Rad).

Cell cycle analysis

In order to analyze the cell cycle distribution, we performed the flow cytometrical analysis. The transfected cells were collected and washed with phosphate buffered saline (PBS) for three times before being fixed in 70% methanol overnight at 4 ℃. The fixed cells were centrifuged, washed again with PBS, and incubated with 1 mg/mL RNase (Ribonuclease) A at 37 ℃ away from light for 30 min. Next, the cells were stained with propidium iodide (PI) (50 µg/mL, Becton-Dickinson, USA) in PBS and 1% Triton-X 100. Samples were measured using a BD FACSCAN flow cytometer (Becton-Dickinson) and the acquired data was analyzed through the Cell Quest Acquisition and analysis programs (Becton-Dickinson).

Plasmid, siRNA, and transfection

The NDC1 overexpression plasmid was obtained from Genechem Biotechnologies Co., Ltd (Shanghai, China), and NDC1 siRNA oligos were synthesized by GenePharma (Shanghai, China) and inserted into a pLKO.1 plasmid. All of the transfection assays were performed using the Lipofectamine 2000 transfection reagent (Invitrogen, Carlsbad, CA, USA) according to the manufacturer’s protocol.

Wound healing assays

HepG2 cells after transfection for 48 hours were spread into 6-well plates with 5×105 cells per well. We utilized a sterile pipette tip to form straight-line scratch wounds until they were completely confluent. The cells were then washed with PBS to remove the non-adherent cells, and the serum-free medium was replaced for further culture. Every 24 h, the scratched cells were photographed using an inverted Leica phase-contrast microscope (Leica DFC 300 FX).

Migration and invasion assays

As for the migration and matrigel invasion assays, a 24-well transwell (8-µm pore size; Millipore) was used. We prepared the matrigel-coated chamber in advance according to the instructions and added 500 µL DMEM with 10% FBS into the bottom chamber. For the migration assay, the concentration of cells was adjusted to 1.0×105/mL 24 h after transfection by DMEM FBS-free medium, and a 100 µL cell suspension was loaded into the non-matrigel-coated top chamber. While in the invasion assay, the concentration of cells was adjusted to 2.0×105/mL, and a 100 µL cell suspension was instead added into the upper chamber coating matrigel. The cells were then fixed with paraformaldehyde, stained with crystal violet, and counted immediately after staining.

Statistical analysis

All statistical data analysis and figures were performed using SPSS 24.0 (IBM, Chicago, USA), GraphPad Prism 9.0 (San Diego, USA), and R 4.1.1 (https://www.r-project.org/). All data shown represent the results of at least three independent experiments, and P<0.05 was considered statistically significant.


NDC1 mRNA (messenger RNA) expression levels in HCC from TCGA database

As shown in Figure 1A, TCGA database showed 17 different kinds of tumors with high NDC1 expression, including HCC (P<0.01). We then selected HCC for further research. Both the boxplot (N=50, T=374, Figure 1B) and also the pairwise boxplot (N=50, T=50, Figure 1C) demonstrated higher NDC1 mRNA levels in cancer tissues versus non-cancerous normal tissues in TCGA (both P<0.01). QRT-PCR experiments were further carried out to verify the mRNA expression of NDC1 in HCC and normal hepatocyte cells, and the outcome was consistent with those mentioned above (Figure 1D).

Figure 1 The mRNA expression levels of NDC1 in HCC. (A) NDC1 mRNA expression in pan-cancer from TCGA database. (B) Boxplot of the NDC1 mRNA expression in HCC from TCGA (N=50, T=374). (C) Pairwise boxplot of the NDC1 mRNA expression in HCC from TCGA (N=50, T=50). (D) QRT-PCR results of NDC1 derived from diverse HCC cell lines versus the normal hepatocyte cell line. (E) K-M survival curves of NDC1 in HCC from TCGA. (F) ROC curves of NDC1 expression in TCGA HCC database with 1-year (0.725), 3- (0.682), and 5-year (0.616). *, P<0.05; **, P<0.01; ***, P<0.001. TPM, transcripts per million; mRNA, messenger RNA; HCC, hepatocellular carcinoma; TCGA, The Cancer Genome Atlas; QRT-PCR, quantitative real-time polymerase chain reaction; K-M, Kaplan-Meier; ROC, receiver operating characteristic; AUC, area under the curve.

Next, the HCC patients were divided into high and low expression groups according to the median expression of NDC1 and the subsequent Kaplan-Meier (K-M) survival analysis displayed an expected result; that is, the high NDC1 expression group had a significantly worse prognosis than the low NDC1 expression group (P<0.001, Figure 1E). To comprehensively assess the diagnostic value of NDC1, we constructed receiver operating characteristic (ROC) curves, which revealed that the 1-, 3-, and 5-year area under the curve (AUC) values were 0.725, 0.682, and 0.616, respectively (Figure 1F). In summary, NDC1 was significantly related to HCC and could predict the prognosis of HCC patients to a certain extent. Thus, NDC1 might be a promising new gene for HCC exploration.

Protein expression of NDC1 in HCC

Next, we discussed the expression of NDC1 at the protein level from two aspects. On the one hand, immunohistochemical staining from the HPA database exhibited a low NDC1 expression state in HCC tissues, which could not be detected in the adjacent normal tissues (Figure 2A,2B). From the CPTAC database, we observed that NDC1 expression in HCC tissues was markedly elevated compared to that in the normal samples, and differences between males and females were also found (Figure 2C,2D, both P<0.001). Also, the western blot analyses of the NDC1 overexpression pattern in HCC tissues and cells showed similar results (Figure 2E, all P<0.01).

Figure 2 The protein expression levels of NDC1 in HCC. (A) NDC1 protein expression in eight HCC tissues and matched adjacent normal tissues. (B) NDC1 protein expression in diverse liver cancer cell lines and one normal liver cell line. (C) Immunohistochemical analyses of NDC1 from the HPA database (N: https://www.proteinatlas.org/ENSG00000058804-NDC1/tissue/liver#img; T: https://www.proteinatlas.org/ENSG00000058804-NDC1/pathology/liver+cancer#img). (D) NDC1 protein expression in normal and HCC tissues from the CPTAC database. (E) NDC1 protein expression in normal and HCC tissues of the different genders from the CPTAC database. ***, P<0.001. T, tumor; N, normal; HCC, hepatocellular carcinoma; HPA, Human Protein Atlas; CPTAC, Clinical Proteomic Tumor Analysis Consortium.

Associations between NDC1 expression and clinicopathological parameters

We observed the mRNA and protein expressions of NDC1 in HCC tissues and then sought to determine whether there were any correlations between NDC1 and clinicopathological parameters. As shown in Figure 3, we found that the NDC1 expression was significantly related to the tumor grade, pathological stage, and T stage (all P<0.01) but not age, gender, race, or M and N stage. In other words, these results reflected that HCC patients with high NDC1 expression might have a worse clinical stage and poorer prognosis, and might also encounter more complex and difficult clinical treatment options.

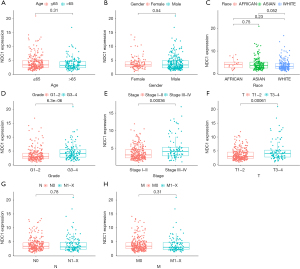

Figure 3 Correlations between NDC1 expression and clinicopathological parameters from TCGA. (A) Age. (B) Gender. (C) Race. (D) Tumor grade. (E) Pathological stage. (F) T stage. (G) N stage. (H) M stage. TCGA, The Cancer Genome Atlas.

NDC1 could independently predict OS in HCC

Subsequently, univariate and multivariate Cox regression analyses were conducted to estimate which of the nine clinical parameters, including NDC1, were independent prognostic factors associated with OS in HCC (the other eight clinical parameters were as follows: age, gender, race, tumor grade, pathological stage, and T, N, and M stage). Univariate Cox regression analysis showed that NDC1, stage, and T stage were significantly correlated with OS in HCC, while the multivariate Cox regression analysis indicated that NDC1 and M stage could predict OS in HCC (all P<0.01, Figure 4 and Table 1). In summary, NDC1 was identified as an independent prognostic indicator in HCC.

Figure 4 Univariate and multivariate Cox regression analyses of NDC1 in HCC. (A) Univariate and multivariate Cox regression analyses were performed to identify potential links between NDC1 and other clinicopathological variables in HCC from TCGA. (B) Multivariate Cox regression analysis was performed to identify potential links between NDC1 and other clinicopathological variables in HCC from TCGA. HCC, hepatocellular carcinoma; TCGA, The Cancer Genome Atlas.

Table 1

Relationship of NDC1 with clinicopathologic characteristics and overall survival in TCGA HCC patients by univariate and multivariate cox analysis

Characteristics Univariate analysis Multivariate analysis
HR 95% CI low limit 95% CI high limit P value HR 95% CI low limit 95% CI high limit P value
Age 1.010346 0.995177 1.025747 0.182343 1.013476 0.996941 1.030285 0.110734
Gender 0.795041 0.535683 1.17997 0.254908 0.907348 0.581349 1.416154 0.668599
Race 1.082731 0.88876 1.319036 0.430024 0.844642 0.642698 1.11004 0.225849
Grade 1.101676 0.849479 1.428746 0.465355 1.075294 0.800488 1.444441 0.629733
Stage 1.642365 1.329845 2.028328 4.09E-06 1.029542 0.472782 2.241955 0.94155
T 1.62586 1.329955 1.9876 2.12E-06 1.604844 0.771265 3.339351 0.20578
M 1.207148 0.970571 1.501391 0.090729 1.516158 1.130575 2.033244 0.005442
N 1.053726 0.839219 1.323062 0.652257 0.882648 0.654918 1.189564 0.412293
NDC1 1.177126 1.102923 1.256322 9.16E-07 1.149912 1.071934 1.233563 9.67E-05

HR, hazard ratio; HCC, hepatocellular carcinoma; TCGA, The Cancer Genome Atlas.

NDC1-related signaling pathways in HCC

Since up-regulated NDC1 was significantly related to the occurrence and development of HCC, we sought to determine the signaling pathways through which NDC1 promoted HCC progression. So, we utilized GSEA analysis to determine the mechanism and signaling pathways of NDC1 regulation in HCC, which revealed seven enrichment pathways, including the cell cycle, the ERBB signaling pathway, the INSULIN signaling pathway, the MTOR signaling pathway, the NOTCH signaling pathway, the P53 signaling pathway, and the WNT signaling pathway (Figure 5).

Figure 5 GSEA was applied to determine the NDC1-related signaling pathways in HCC from TCGA. (A) Cell cycle signaling pathway. (B) ERBB signaling pathway. (C) INSULIN signaling pathway. (D) MTOR signaling pathway. (E) NOTCH signaling pathway. (F) P53 signaling pathway. (G) WNT signaling pathway. (H) All seven remarkably enriched signaling pathways. HCC, hepatocellular carcinoma; GSEA, gene set enrichment analysis; TCGA, The Cancer Genome Atlas.

Associations between NDC1 and the PPI network, MSI, TNB, and TMB, and NDC1 alteration analysis in HCC

We utilized the STRING database to analyze the PPI in HCC and detected 10 genes that were potentially associated with NDC1: CCNB1, CCNB2, CDK1, NUP93, NUP21, NUP35, NUP205, NUP155, CDCA8, and SEH1L (Figure 6A). Next, we further analyzed the relationship between NDC1 and MSI, TNB, and TMB. The outcomes revealed that NDC1 had a certain correlation with MSI (P=0.043) but no links to TNB (P=0.49) and TMB (P=0.93) (Figure 6B-6D). Using the cBioPortal database (TCGA, Pan-cancer Atlas), we also studied the mutational characteristics of NDC1 in HCC. The NDC1 mutation frequency results in pan-cancer and the mutation site in HCC were illustrated in Figure 6E,6F.

Figure 6 Associations between NDC1 and (A) PPI network, (B) MSI, (C) TMB, (D) TNB, and (E,F) mutational characteristics from TCGA. PPI, protein-protein interaction; MSI, microsatellite instability; TNB, tumor neoantigen burden; TMB, tumor mutational burden; TCGA, The Cancer Genome Atlas.

Relationships between NDC1 and immune cell infiltration, tumor microenvironment, immune checkpoint molecules, and immune cell pathways

Using the Spearman method, we concluded that NDC1 mRNA expression was significantly linked to six types of immune cell infiltration (B cells, neutrophils, CD4+ T cells, CD8+ T cells, dendritic cells, and macrophages; all P<0.01, Figure 7A). Nevertheless, the mRNA expression of NDC1 exhibited no obvious associations with the ESTIMATEScore (P=0.284), StromalScore (P=0.602), or ImmuneScore (P=0.127), as shown in Figure 7B. As for the immune checkpoint molecules and immune cell pathways, we confirmed that the NDC1 mRNA level was probably related to 35 kinds of immune checkpoint molecules using the Pearson method, including VTCN1, VSIR, TNFSF9, TNFSF4, TNFSF18, TNFSF15, TNFSF8, TIGIT, NRP1, LAIR1, KIR3DL1, ICOSLG, ICOS, PDCD1, PDCD1LG2 and so on (all P<0.05, Figure 7C). Similarly, based on the immune cell pathways, the NDC1 mRNA level was strongly correlated to Type 2 T-helper cells, neutrophils, natural killer T-cells, monocytes, immature dendritic cells, eosinophils, effector memory CD4 T-cells, central memory CD4 T-cells, CD56 bright natural killer cells, activated CD4 T-cells, activated CD8 T-cell, CD56 dim natural killer cells, memory B cell, Type 1 T-helper cells and Type 17 T-helper cells (all P<0.05, Figure 7D).

Figure 7 Relationships between NDC1 and (A) immune cell infiltration; (B) tumor microenvironment; (C) immune checkpoint molecules, and (D) immune cell pathways from TCGA. *, P<0.05; **, P<0.01; ***, P<0.001. TCGA, The Cancer Genome Atlas.

Prediction of NDC1 expression in response to immunotherapy

Ultimately, we attempted to probe the possible responses of high and low NDC1 expressions to anti-cytotoxic T lymphocyte antigen 4 (CTLA-4) or anti-programmed cell death protein 1 (anti-PD-1) using the TCIA database. Our outcomes indicated that the low-NDC1 expression group tended to be much more sensitive to CTLA-4 or PD-1 immunotherapy alone (both P<0.001), as opposed to a combination of both (P=0.0021, Figure 8A-8C).

Figure 8 Responses of NDC1 expression to diverse immunotherapies. (A) The response to anti-PD1 in the high and low NDC1 expression groups. (B) The response to anti-CTLA4 in the high and low NDC1 expression groups. (C) The response to both anti-PD1 and anti-CTLA4 in the high and low NDC1 expression groups.

NDC1 promoted the proliferation of HCC cells

NDC1 has been reported to play an important role in cell proliferation in cervical cancer and non-small cell lung carcinoma (22-24). We speculated that NDC1 had a potential effect on HCC cell proliferation. To verify this hypothesis, we constructed NDC1 overexpression and small interference models using synchronous HCC cells. In this study, we selected the HepG2 cell line for further study since previous experiments had shown higher NDC1 mRNA and protein expression in HepG2. Following the transfection of HepG2 cells with the NDC1-overexpressing plasmid or siRNA, we observed a dramatic rise or decrease in the expressions of NDC1 and PCNA compared to the controls, which was associated with cell proliferation (Figure 9A,9B).

Figure 9 NDC1 was involved in cell proliferation. (A) NDC1 overexpression in HepG2 cells. Western blot was performed to analyze NDC1, PCNA, and GAPDH expression. (B) NDC1 protein expression was detected by western blot 48 h after siRNA transfection of HepG2 cells. Western blotting showed that NDC1-siRNA#2 had the highest knockout efficiency. (C) The cell proliferation index was measured using a CCK-8 assay. (D) Flow cytometry showed that NDC1 enhanced the cell population in the S phase. (E) Cell proliferation was measured by EDU (Apollp448). Magnification: 400×. *, P<0.05. PCNA, Proliferating Cell Nuclear Antigen; OD, optical density; siRNA, small interfering RNA; CCK-8, Cell-Counting-Kit-8; EDU, 5-Ethynyl-2’-deoxyuridine.

Meanwhile, we defined NDC1-siRNA-2 as the most interfering site, and used it in the subsequent assays. First of all, we performed CCK-8 assays to detect cell viability, so as to comprehensively confirm the effects of NDC1 on cell proliferation in HCC. We found that cell viability was obviously increased in HepG2 cells with NDC1 overexpression. Meanwhile, the opposite effects on cell viability were also observed with NDC1 knockdown (Figure 9C). In addition, the percentage of cells in the S phase increased markedly in the presence of NDC1 overexpression but quickly decreased after NDC1 expression defects (Figure 9D). The EDU incorporation assays also showed similar outcomes (Figure 9E). All of the data indicated that NDC1 facilitated the G1-S transition of HCC cells. Together, these results demonstrated that NDC1 participated in cell cycle regulation and eventually resulted in the impaired proliferation of HCC cells.

NDC1 regulated HCC cell migration and invasion

Based on the finding that NDC1 was associated with the migration and invasion ability of cervical cancer cells (24), we speculated that NDC1 might exert a crucial function in the regulation of cell migration and invasion in HCC progression. Wound healing and transwell assays (without matrigel) showed that NDC1 overexpression could promote cell migration ability in HepG2 cells compared to the control group, while depletion of NDC1 suppressed this ability. Moreover, in the transwell assay (with matrigel), an enhanced invasive ability was observed in NDC1-overexpressing HepG2 cells, which declined with NDC1 knockdown (Figure 10A-10D). Furthermore, we detected the expression of E-cadherin and Vimentin by western blot analysis. NDC1-overexpressing HepG2 cells had a notable decrease in the level of E-cadherin and an increase in the level of Vimentin. However, knockdown of NDC1 not only decreased the expression of Vimentin, but also obviously enhanced the expression of E-cadherin (Figure 10E). These results suggested that NDC1 might regulate the migration and invasion of HCC cells.

Figure 10 NDC1 promoted cell migration and invasion. (A,B) 48 h after transfection in HepG2 cells, wound healing assays were visualized at 36 h. (C,D) Transwell migration and invasion assays were performed 24 h after 48 h transfection in HepG2 cells (crystal violet staining, 200× magnification). (E) The effects of NDC1 on the expression of E-cadherin and Vimentin in HepG2 cells were detected by western blot analysis.


HCC is a common malignant tumor with high rates of morbidity and mortality both in China and around the world (25). Although advances in cancer screening, diagnosis, and management have improved the prognosis of HCC, the current 5-year survival rate for HCC is still unsatisfactory due to its high rates of metastasis and recurrence after surgical resection (26,27). Fortunately, an increasing number of molecules have been shown to play vital roles in the occurrence and development of HCC, which is greatly beneficial for enhancing the survival of HCC patients (28-31). NDC1, the most conserved component of NPCs, is a transmembrane nucleoporin that plays vital roles in NPC assembly and nucleocytoplasmic transport. A previous study has reported on the requirement of SEPT12 (Septin12)-NDC1 complexes for mammalian spermiogenesis (32). Yamazumi et al. suggested that the NDC1-mediated localization of ALADIN (ALacrima Achalasia aDrenal Insufficiency Neurologic disorder) to NPCs was essential for selective nuclear protein import, and that abrogation of the interaction between ALADIN and NDC1 might induce triple-A syndrome (33), both of which indicated the indispensable function of NDC1 in biological processes. In recent years, studies on NDC1 in malignant tumors have gradually increased, mainly in non-small cell lung cancer and cervical cancer (22-24). However, little is currently known about the function of NDC1 in HCC. Therefore, we conducted this research to explore the potential prognostic and immunological value of NDC1 in HCC.

Firstly, significant upregulation of NDC1 expression was established in HCC tissues compared to non-tumor normal tissues in TCGA database and was found to be correlated with poor OS. Similar results were also obtained through qRT-PCR, immunohistochemistry, western blotting, and the CPTAC database. In addition, NDC1 expression was significantly linked to tumor grade, pathological stage, and T stage. More interestingly, NDC1 was identified as an independent prognostic factor for HCC via univariate and multivariate Cox regression analyses, which was of great significance for the clinical application of NDC1.

To comprehensively investigate the mechanisms through which NDC1 was involved in HCC progression, we searched the GSEA database and found that NDC1 was preferably enriched in the cell cycle, ERBB, INSULIN, MTOR, NOTCH, P53, and WNT-related pathways. Large early studies had confirmed that an aberrant cell cycle could induce the malignant proliferation of various tumor cells (34-37). Similarly, ERBB receptors are commonly overexpressed or overactivated in numerous cancers, especially in breast, ovarian, and non-small cell lung cancers, which are strongly correlated with poor prognosis, drug resistance, cancer metastasis, and a lower survival rate (38-40). Moreover, a growing body of evidence indicates that insulin and insulin-like growth factors can regulate cell proliferation, differentiation, apoptosis, glucose transport, and energy metabolism, and thus, play a critical role in tumorigenesis (41). Also, mTOR is frequently activated in cancer and could efficiently control cell growth and metabolism (42). Emerging data has validated that Notch signaling could contribute to increased aggressive properties such as invasion, tumor heterogeneity, angiogenesis, or tumor cell dormancy within solid cancer tissues, especially in epithelial cancers (43). P53, which is a key tumor suppressor, is frequently a prerequisite for cancer development owing to its function loss (44). As one of the most important signaling pathways, Wnt signaling is most active during embryogenesis, facilitating new organism formation by cell differentiation, polarization, and migration, and is commonly activated during the development of several tumors (45). Taken together, these findings highlight that NDC1-related signaling pathways are definitely involved in the key processes of oncogenesis, which lays a good foundation for further studies of NDC1 in HCC.

Considering the widespread participation of immune cells and related secretory factors in the regulation of malignant tumor growth and invasion, we further probed the relationship between NDC1 and immunity. Previous studies had reported that TMB, TNB, and MSI could be used as biomarkers related to pan-cancer immunotherapy efficacy and survival prognosis (46-48). Hence, we utilized the Pearson method and observed a subtle correlation between NDC1 expression and MSI, but not TNB or TMB. In recent decades, studies on immune cell infiltration, the tumor microenvironment, immune checkpoint molecules, and immune cell pathways have become increasingly important for tumorigenesis and development, and a large amount of data have verified remarkable links between the above elements and tumor prognosis and immunotherapy response (49-51). In the present study, we shed light on the dramatic crosstalk between NDC1 and immune cell infiltration using the Spearman method and fortunately determined apparent associations between NDC1 and B cells, neutrophils, CD4+ T cells, CD8+ T cells, dendritic cells, and macrophages. However, we did not observe any relationships between NDC1 and the ESTIMATEScore, StromalScore, or ImmuneScore. As for the immune checkpoint molecules and immune cell pathways, our results demonstrated that NDC1 was significantly associated with up to 35 immune checkpoint molecules and 15 immune cell pathways. At present, cancer cells are known to possess the ability to activate different immune checkpoint pathways that harbor immunosuppressive functions. Monoclonal antibodies that target immune checkpoint molecules have provided an important breakthrough in cancer therapeutics (52,53). Many studies have shown that there may be a correlation between immune cells and HCC prognosis, among which M1 macrophages (54), CD4+ T cells (55), CD8+ T cells (56) and B cells (57) are associated with a good prognosis of HCC, while M2 macrophages (58), regulatory T cells (Tregs) (59) and regulatory B cells (Bregs) (60) may be associated with poor prognosis of HCC. In addition, it is well known that PD-1 is a molecule that can block immune function. Its high expression can mediate tumor immune escape and allow tumor growth, proliferation and spread. PD-1 and its ligand inhibitors have become a promising therapeutic method (61). Interestingly, our prediction not only found that NDC1 was closely associated with these immune cell infiltrations, but also with PD-1(PCDC1) and its ligand PDCDLG2, so could NDC1 regulate immune cells and ultimately promote HCC progression by influencing the expression of PD-1 or its ligand? This is an important question for us to pay attention to and further study. Therefore, we have more reasons to believe that NDC1 is highly likely to become the next biomarker for tumor therapy.

Finally, we determined the potential roles of NDC1 in the cell proliferation, migration, and invasion of HCC. Through CCK-8, EDU, and flow cytometry analysis, we discovered that NDC1 overexpression could significantly enhance cell proliferation and depletion of NDC1-suppressed cell proliferation. EMT is involved in the invasion and metastasis of various tumor cells, and plays an important role in tumor progression, including HCC. We detected the expression of EMT-related proteins, such as E-cadherin and Vimentin, in HepG2 cells (62). The silencing of NDC1 enhanced E-cadherin protein expression but reduced that of Vimentin. NDC1-overexpressing HepG2 cells displayed the opposite results. Furthermore, through wound healing and transwell assays, we found that the overexpression of NDC1 remarkably enhanced the HCC cell migration and invasion abilities.

The key finding of our paper was that it elucidated the expression pattern and potential functions of NDC1 in HCC for the first time, and also provided new ideas for the prognosis and immunotherapy of HCC. However, there were still some limitations that should be noted. Firstly, the precise mechanism and other possible oncogenic roles of NDC1 in HCC progression still need to be investigated. In future research, we will aim to study the detailed mechanism of NDC1 in HCC through a series of in vitro and in vivo experiments, including in cells, tissues, and nude mice. We expect that in the near future, NDC1 will become a new target for the clinical treatment of HCC and present novel approaches for combating HCC.


In summary, our article demonstrated elevated NDC1 expression in HCC tissues versus corresponding normal tissues at both RNA and protein levels. Furthermore, NDC1 was speculated to play an irreplaceable role in HCC prognosis prediction and immunotherapy. As well, we constructed NDC1 overexpression and small interference models to verify its functions in HCC cell proliferation, migration, and invasion. Overall, NDC1 served as a key tumor promoter during HCC progression.


Funding: None.


Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-1166/rc

Data Sharing Statement: Available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-1166/dss

Peer Review File: Available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-1166/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-1166/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the Ethics Committee of the Second Affiliated Hospital of Nantong University (No.2022KT244). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Informed consent was provided by all participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
