Development and validation of machine learning models for postoperative venous thromboembolism prediction in colorectal cancer inpatients: a retrospective study
• This study developed a XGBoost model with excellent performance in the prediction of venous thromboembolism (VTE) occurrence in colorectal cancer (CRC) surgical patients.
What is known and what is new?
• The current strategy of VTE risk assessment among CRC inpatients is to use different VTE models, but neither the current generic nor cancer-specific models have adequate sensitivity and specificity.
• In this study, we selected the widely available clinical features for machine learning (ML) models to predict the occurrence of VTE in surgical CRC patients. All established ML models outperformed the Caprini and Khorana model.
What is the implication, and what should change now?
• This study shows that machine learning is a novel approach to accurately predict the occurrence of VTE in surgical CRC patients. The proposed risk factors through model interpretation could shed light on VTE risk stratification in CRC.
Venous thromboembolism (VTE), consisting of deep vein thrombosis (DVT) and pulmonary embolism (PE), is a common complication after surgery in cancer patients (1). The impact of specific cancers on venous thromboembolism has been studied for years (2). The risk of VTE occurrence in cancer patients varies greatly due to differences in tumor site, therapies, or other risk factors (3). Thus, the clinical benefit of VTE prophylaxis for cancer patients depends mainly on accurate and individual-appropriate predictive Models (4).
Colorectal cancer (CRC) is the third most common cancer worldwide (5,6). Current VTE risk screening guidelines for CRC patients, which are developed from incomplete CRC patient cohorts and are extrapolated from data of other cancer types, have low sensitivity and specificity. The Khorana score was initially developed using multivariate logistic regression method in ambulatory cancer patients and was further validated in hospitalized cancer patients (7). The score is based on five parameters: site of the cancer, obesity, platelet count, hemoglobin, and white blood cell count; colorectal cancer is scored as 0 for ‘site of cancer’. Several validation studies of the Khorana model in patients with gastrointestinal cancer have shown conflicting results (8). Due to the limitations that some potential laboratory biomarkers (such as D-dimer) were not involved as predictors, the receiver operating characteristic curve-area under the curve (ROC-AUC) values of the Khorana model were previously in a range of 0.5–0.7, and a value of over 0.8 is expected (9). D-dimer and soluble P-selectin levels were subsequently added into the Vienna model, which led to improvement in VTE prediction (10). Nevertheless, the soluble P-selectin test has been less clinically applied than other laboratory predictors due to its high cost (10). The Caprini model, which is recommended by the guidelines of the American College of Chest Physicians (ACCP), is the most widely used model in surgical patients. Several studies have been performed to validate the predictive ability of the Caprini model for surgical patients with CRC, the ROC-AUC values were in a range of 0.6–0.7 (11,12). Despite the acceptable prediction performance of this model, the Caprini score was rightfully criticized for its complexity and difficulty in interviewing patients for all risk factors (more than 30 factors). It is worth noting that Caprini score is developed by a summary of risk factors from 538 patients not statistical method (13).
Colorectal cancer is a heterogeneous group of malignancies distinguished by distinct clinical, biological, and genetic features. Although the particular primary location of a tumor in the large bowel, tumor stages and chemotherapy regimens have prognostic significance for patients, the association of these risk factors with venous thromboembolism is yet to be clarified (14-16).
Recently, various machine learning (ML) methods, including decision tree-based algorithms, support vector machines (SVMs), and artificial neutral networks (ANNs), have been developed for risk prediction in both diseases and disease-associated clinical complications (17,18). Due to the powerful computational learning ability without reliance on rule-based preprogramming, we hypothesized that ML might provide a powerful alternative approach for CRC patient-specific VTE predictive tool development. Another major advantage of ML techniques lies in their ability to handle the highly complex and uncertain error structure of clinical datasets, giving their ability to explain how much a given input feature contributes to a model output.
Therefore, the aim of this study was to develop different binary classification VTE predictive models for surgically hospitalized CRC patients using different ML methods and to compare the performance of these ML models with that of previous risk models (Khorana and Caprini). We present the following article in accordance with the TRIPOD reporting checklist (available at https://jgo.amegroups.com/article/view/10.21037/jgo-23-18/rc).
Study design and participants
This is a single-center, retrospective observational study. The Institutional Review Board of the Sixth Affiliated Hospital, Sun Yat-sen University (approval number: 2021ZSLYEC-420) approved this retrospective study with a waiver of informed consent due to its retrospective nature. This study was carried out with adherence to the stipulations of the Declaration of Helsinki (as revised in 2013). This study was limited to inpatients with nonemergent surgery (Table S1). All patients underwent CRC surgery on the primary tumor site with curative intent. Th eligibility criteria included: (I) at least 18 years of age at enrollment; (II) at least 7 days of hospital stay length; and (III) patients with a histopathologic diagnosis of malignant tumor before being diagnosed with VTE. The exclusion criteria consisted of the following items: (I) patients admitted for palliative care; (II) patients with recently diagnosed VTE who were actively receiving anticoagulation treatment; and (III) patients who died during hospitalization.
The data acquisition took place between August 2019 and August 2022. Approaches used to identify VTE cases in patients with colorectal cancer have been reported (19). The clinical data from a total of 4,914 surgically hospitalized patients were recorded in an IRB-approved prospectively maintained colorectal cancer database. The variables included patient-level factors (sex, age at diagnosis, body mass index (BMI), comorbidities, cardiovascular and thromboembolic risk factors), cancer-level factors (tumor stages and grades, primary tumor location), and treatment-level factors (Table S2). The laboratory data during the patient’s hospital stay were collected repeatedly at different time intervals. Static features are defined as statistics including the mean, standard deviation, minimum, maximum, and median of laboratory data with multiple repeated measurements. Dynamic temporal features were generated based on the original laboratory data with a time interval of 24 hours. Each patient had 11 time points (from preoperative 3 days to postoperative 7 days). The details of all these variables are shown in Table S2.
The primary outcome was 30-day, non central venous catheter (CVC)-associated VTE in patients with either DVT or PE. Cases were defined as patients with new diagnoses of VTE [within 30 days of the surgical procedure using a postoperative imaging study (CT and ultrasound)]. In our cancer center, systemic ultrasound and CT examinations were performed routinely for every surgical patient. Imaging studies were also performed if patients developed new-onset postoperative symptoms, such as edema of the limb, unexplained pain and fever, skin ulceration, gait disorders, or abnormal laboratory findings during hospitalization. Patients with CVC-associated VTE were considered to have only VTE if VTE was also present at other sites. For the patients with a stay of less than 30 days, two formally trained case reviewers were required to make patient contact via phone call or a WeChat message to conduct a thorough review of medical records to identify postoperative VTE diagnosed or managed at other institutions.
Khorana score and Caprini score
Each included patient was assessed retrospectively by two previous VTE models for VTE risk, including one general VTE risk model [Caprini (20)] and one cancer-specific VTE risk model [Khorana (21)]. The stratification of VTE risk was based on the cutoff points recommended in the corresponding derivation cohorts of the different models. In Khorana, the patients were categorized into three risk groups based on the score: “low” (score 0), “intermediate” (score 1–2), and “high” (score ≥3) (21). The Caprini score also produces a cumulative risk score based on 39 risk factors. According to the modified version of the Caprini RAM by the ACCP (the most widely used version of the Caprini RAM), patients are classified as follows: “very low risk” (score 0), “low risk” (1–2), “moderate risk” (3–4), and “high risk” (≥5) (18). The risk factors identified by these two models and the points assigned for each factor are shown in Table S3.
Machine learning model
Prior to training our model, the continuous variables were normalized, and the categorical variables were encoded as dummy variables. ML models including logistic regression (LR), random forest (RF), extreme gradient boosting (XGBoost), weighted support vector machine (SVM), a multilayer perception (MLP) network, and a long short-term memory (LSTM) network were employed in this study for VTE prediction. Briefly, the LSTM model accepts dynamic data, while the other ML models accept static features. A grid search strategy based on 10-fold cross-validation was applied for hyperparameter tuning and model training, which was conducted on the training dataset (30% of the total). The total cohort was used as the test dataset to compare the performance of all models based on six indicators, including the ROC-AUC, sensitivity (SEN), specificity (SPE), positive predictive value (PPV), negative predictive value (NPV), and Brier score.
To enable model interpretability, a SHapley Additive exPlanations (SHAP) analysis was implemented. For explanation of ML models based on the static features, the SHAP values of individual patients were calculated to estimate the variable’s contribution to predict the class label in the model. For an explanation of the LSTM model based on dynamic features, SHAP values were calculated by fractions using 24-hour intervals. A global ranking of how each variable contributed to the predicted VTE outcome at the group level was derived from the mean absolute SHAP values in ML models except LSTM. For the LSTM model, the global ranking of each continuous variable was calculated at different time points.
All statistical analyses and graphs were realized using packages in the Python platform. Continuous variables were described using their median values and interquartile ranges. Categorical variables were described using frequency counts and percentages. Comparisons between the VTE and non-VTE groups were conducted by ANOVA, nonparametric Student’s t test, or chi-square test in different situations. Missing data were imputed using multivariate imputation by the chained equations method in Python. All tests were two-sided; P values less than 0.05 were considered statistically significant. The model performance was considered excellent for ROC-AUC values 0.9–1, good for ROC-AUC values 0.8–0.9, fair for ROC-AUC values 0.6–0.8, and poor for AUC values 0.5–0.6.
Characteristics of the study cohort
Of the 4,914 patients who were admitted to the colorectal cancer center between August 2019 and August 2022, 1191 surgical patients who met the eligibility criteria during the study were included. A brief description of the patient characteristics and the detailed description of all variables are shown in Table 1 and Table S2, respectively. All patients with CRC were Chinese, with a median age of 63 years, a median hospitalization duration of 32 days, and an American Society of Anesthesiologists (ASA) grade II to III. The overall VTE rate of our study population was 10.8%. The surgery-related information of the patients is shown in Table S1.
|Patient characteristics||All patients, n (%) or median (IQR), n=1,191||All patients, n (%) or median (IQR), VTE, n=129||All patients, n (%) or median (IQR), non VTE, n=1,062||P value|
|Age (years)||63 (54 to 70)||64 (56 to 72)||63 (54 to 70)||0.169|
|Females||419 (35.1%)||61 (47.3%)||358 (33.6%)||0.003|
|BMI ≥25||224 (18.8%)||30 (23.3%)||194 (18.2%)||0.166|
|BMI ≥28||53 (4.4%)||7 (5.4%)||46 (4.3%)||0.564|
|Hypertension||315 (26.4%)||32 (24.8%)||283 (26.6%)||0.667|
|Diabetes mellitus||149 (12.5%)||13 (10.1%)||136 (12.8%)||0.382|
|Dyslipidemia||119 (10.0%)||8 (6.2%)||111 (10.4%)||0.131|
|Liver cirrhosis||7 (0.6%)||2 (1.6%)||5 (0.5%)||0.129|
|Hepatic dysfunction||46 (3.9%)||3 (2.3%)||43 (4.0%)||0.340|
|Chronic lung disease||30 (2.5%)||5 (3.9%)||25 (2.3%)||0.295|
|Heart failure||5 (0.4%)||–||5 (0.5%)||0.435|
|History of a myocardial infarction||70 (5.9%)||4 (3.1%)||66 (6.2%)||0.157|
|History of a stroke||61 (5.1%)||7 (5.4%)||54 (5.15%)||0.862|
|Atrial fibrillation||16 (1.3%)||1 (0.8%)||15 (1.4%)||0.555|
|Varicose vein||6 (0.5%)||2 (1.6%)||4 (0.4%)||0.075|
|History of VTE||2 (0.2%)||2 (1.6%)||–||<0.001|
|History of major bleeding||37 (3.1%)||3 (2.3%)||34 (3.2%)||0.592|
|Tumor stage I-II||570 (47.7%)||51 (39.5%)||519 (48.7%)||0.048|
|Tumor stage III-IV||624 (52.3%)||78 (60.5%)||546 (51.3%)||0.048|
|Metastasis disease||288 (24.1%)||39 (30.2%)||249 (23.4%)||0.086|
|The site of tumor|
|Right colon||316 (26.5%)||33 (25.6%)||283 (26.6%)||0.810|
|Transverse colon||92 (7.7%)||4 (3.1%)||88 (8.3%)||0.038|
|Left colon||221 (18.5%)||16 (12.4%)||205 (19.2%)||0.059|
|Sigmoid colon/rectum||563 (47.2%)||74 (57.4%)||489 (45.9%)||0.018|
|Appendix/cecum||2 (0.2%)||2 (1.6%)||–||<0.001|
BMI, body mass index; IQR, interquartile range; VTE, venous thromboembolism.
Results of the model performance

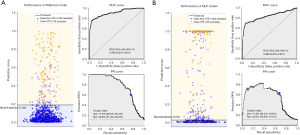

Six ML models were established (LR, RF, XGBoost, SVM, MLP, and LSTM). Table 2 shows the prediction performance of the VTE models in the CRC patients. Six indicators, including ROC-AUC, sensitivity, specificity, PPV, NPV, and Brier score, were applied to assess the candidate models. Additionally, the model performance was visualized in ROC curves, precision-recall (PR) curves, and with binary classification performance (Figure 1 and Figure S1). The previously developed Caprini score and Khorana score were applied to compare and evaluate model performance. Our results indicated that the XGBoost model achieved the overall best prediction, with an ROC-AUC of 0.908 (95% CI: 0.870–0.941). Despite a lower ROC-AUC of 0.868 (95% CI: 0.818–0.915), the MLP model had the highest PPV of 64.8% (95% CI: 55.9–73.3%) among all the candidate models. Overall, all the ML models performed better than the previously developed models (Caprini and Khorana).
(%, 95% CI)
|Specificity (%, 95% CI)||Positive predictive value (%, 95% CI)||Negative predictive value (%, 95% CI)|
|Cutoff 5 pointsb||0.769 (0.711–0.821)||–||96.9 (93.1–99.6)||100.0||10.5 (8.6–12.5)||100.0|
|Cutoff 9 pointsc||–||59.7 (50.5–69.0)||85.0 (82.5–87.3)||32.6 (26.5–39.3)||94.6 (93.1–96.1)|
|Cutoff 3 pointsb||0.646 (0.598–0.699)||–||10.9 (5.6–17.3)||98.0 (97.0–98.9)||40.0 (22.2–58.3)||90.1 (88.2–91.9)|
|Cutoff 1 pointsc||–||62.0 (52.5–70.8)||63.8 (60.6–67.0)||17.2 (13.5–21.2)||93.3 (91.2–95.2)|
|Machine learning models|
|Training cohort||0.937 (0.898–0.971)||0.046||82.8 (72.7–92.5)||90.8 (72.7–92.5)||51.9 (41.2–62.5)||97.8 (96.4–99.0)|
|Testing cohort||0.894 (0.856–0.929)||0.052||76.0 (67.8–84.7)||87.9 (85.9–90.0)||43.4 (36.6–50.3)||96.8 (95.5–98.0)|
|Training cohort||0.912 (0.866–0.953)||0.066||78.1 (66.7–89.1)||88.1 (85.1–91.2)||44.2 (33.9–55.3)||97.1 (95.5–98.7)|
|Testing cohort||0.866 (0.822–0.908)||0.070||72.1 (63.4–80.9)||87.2 (84.9–89.3)||40.6 (33.5–47.5)||96.3 (94.8–97.5)|
|Training cohort||0.943 (0.921–0.961)||0.068||100.0||90.6 (87.9–93.3)||56.1 (46.7–66.7)||100.0|
|Testing cohort||0.879 (0.847–0.910)||0.071||79.1 (72.1–86.3)||88.8 (86.7–90.8)||46.2 (39.5–53.5)||97.2 (96.1–98.3)|
|Training cohort||0.990 (0.980–0.997)||0.029||96.9 (91.5–100.0)||96.1 (94.2–97.8)||74.7 (64.5–84.2)||99.6 (98.9–100.0)|
|Testing cohort||0.908 (0.870–0.941)||0.047||77.5 (69.3–85.4)||93.7 (92.1–95.3)||59.9 (51.9–68.2)||97.2 (96.0–98.2)|
|Training cohort||0.967 (0.917–99.8)||0.013||92.2 (83.9–98.2)||99.4 (98.7–99.8)||95.2 (88.9–99.8)||99.1 (97.9–99.9)|
|Testing cohort||0.868 (0.818–0.915)||0.066||71.3 (63.2–79.6)||95.3 (93.8–96.6)||64.8 (55.9–73.3)||96.5 (95.1–97.6)|
|Training cohort||0.822 (0.812–0.916)||0.118||78.3 (70.1–86.3)||85.9 (83.7–88.2)||38.5 (31.5–45.6)||97.2 (96.1–98.3)|
|Testing cohort||0.803 (0.783–0.885)||0.122||74.2 (65.5–82.5)||86.5 (84.2–88.7)||39.7 (33.3–46.7)||96.5 (95.2–97.7)|
a, The value of the C-index is the same as that of the AUC in the logistic regression model; b, Recommended cutoff points based on derivation studies; c, Calculated cutoff points based on ROC curves. Data are ROC-AUCs and (95% CI). ROC, receiver operating characteristic; AUCs, areas under the curve; CI, confidence interval; CRC, colorectal cancer; RAM, risk assessment model; LR, logistic regression; RF, random forest; SVM, support vector machine; MLP, multilayer perception network; LSTM, long short-term memory; VTE, venous thromboembolism.
Interpretation and evaluation of machine learning models
The XGBoost model and MLP model were selected for further interpretation due to their better performance. We additionally interpreted the LSTM model, as time-series laboratory data analysis was only available in this model. The results of the SHAP analysis of XGBoost, MLP, and LSTM are shown in Figures 2-4, respectively. The SHAP values were used to represent the local contribution of each feature to the individual predictions made by the corresponding models.

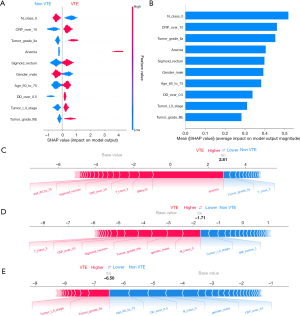

Based on the mean absolute SHAP value, ten of the most significant clinically associated features for VTE prediction, including lymph node metastasis (N class 0), C-reactive protein (CRP over 10 mg/L), tumor grade (IIa/IIIb), anemia, primary tumor location (sigmoid/rectum), sex, age (age group: 60 to 75), D-dimer (over 0.5 µg/mL), and tumor stage (I/II), were identified in the XGBoost model (Figure 2A,2B). Similarly, calculation of the SHAP values in the MLP model interpretation revealed that anemia, gender, lymph node metastasis (N class 0), tumor grade (IIa), tumor class 4a (T class 4a), primary tumor location (sigmoid/rectum), body mass index (BMI ≥25), thrombin time (TT <14 s), D-dimer (over 0.5 µg/mL), and C-reactive protein (CRP over 10 mg/L) had the most substantial contribution to the model output (Figure 3A,3B). Figure 2A and Figure 3A also demonstrate the direction of the correlation between the feature and model output. For example, primary tumor location (sigmoid/rectum) had an asymmetric distribution of SHAP values, with primary tumor location (sigmoid/rectum) indicating an increasing association with VTE occurrence.

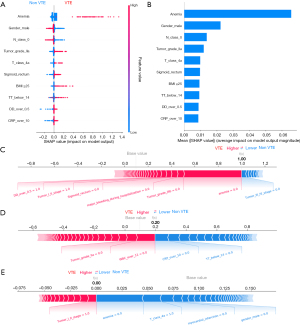

In the LSTM model, the variable contributing to the predicted VTE outcome at the continuous variable level was derived from mean absolute SHAP values, which were calculated at different time points. The ten highest preforming clinically relevant variables in the LSTM model are exhibited, including creatine kinase (CK), creatinine (Cr), C-reactive protein (CRP), α-hydroxybutyrate dehydrogenase (α-HBDH), lactate dehydrogenase (LDH), lipoprotein (a) [Lp (a)], myoglobin (MYO), platelet (PLT), uric acid (UA), and white blood cells (WBC). Figure 4 shows that WBC level was the most impactful variable. The trends of these ten variables over time are also depicted in Figure 4. For example, the impact of WBC on the model output seems to increase gradually over time from preoperative Day 2 to postoperative Day 6.
For a single patient prediction, the final model output and prediction confidence are formed by the sum of contributions made by each of their features (22). The XGBoost model predictions for three patients, including a patient with a significant positive outcome, a patient with an indeterminate outcome, and a patient with a strong negative outcome, are shown in Figure 2C-2E, respectively. Similarly, the MLP model predictions for three patients (positive, indeterminate, and negative) are depicted in Figure 3C-3E, respectively.
This 1191-sample retrospective cohort study developed multiple prediction models for VTE in surgical patients with CRC. Six different types of supervised machine learning algorithms (LR, RF, XGBoost, SVM, MLP, and LSTM) were applied to examine the features in our cohort. Two widely used VTE models, the Caprini model and the Khorana model, were used as the benchmark models to compare the performance of the ML models. We found that the XGBoost model achieved the best classification performance with the highest ROC-AUC, and the MLP model achieved the highest PPV in our cohort. The performance of the two benchmark models was “moderate” (ROC-AUC of Caprini: 0.769 and ROC-AUC of Khorana: 0.646), but all the ML models achieved an ROC-AUC over 0.8.
In our study, the Caprini model and the Khorana model had acceptable NPV (>90%) but a low PPV (<40%). Thus, these models are highly effective at identifying patients with CRC who are at low risk for VTE, but the models may not be as predictive in individual specific cancers because they were designed as a tool for a mixed solid tumor population. Of note, although the Caprini model exhibited a satisfactory sensitivity (over 90% by the recommended cutoff points based on derivation studies), it stratified more than 90% of patients as high risk, and its low PPV (approximately 10%) suggested that a large portion of patients may be exposed to unnecessary risks associated with VTE prophylaxis.
In general, an ideal prediction model should simultaneously achieve excellent sensitivity and specificity; however, there is a trade-off between these two desirable properties. It is unclear how this trade-off affects the clinical benefit of VTE prophylaxis. In fact, patients with colorectal cancer who have high VTE risk frequently present with venous cavernomas and/or signs of portal hypertension, which can lead to complications such as variceal bleeding (23). These patients are routinely seen in clinical practice, but they are underrepresented in clinical trials, making VTE prophylaxis and treatment decisions difficult. Taking the increased risk of bleeding in CRC patients into account, we believe that the VTE prediction model for this population should have high sensitivity and positive predictive value. Our results show that the XGBoost model has the highest ROC-AUC and the second highest PPV. Despite the fact that the MLP model’s performance was comparable to that of the XGBoost model, the sum of sensitivity and positive predictive value of the XGBoost model was higher. Therefore, we considered that this model was the optimal model for postoperative VTE prediction in CRC patients.
Machine learning models can receive the characteristics of a large number of features and understand the dataset to obtain implicit correlations to serve complex binary/multiclass classification. SHAP is an explainable framework that allows researchers to comprehend and trust the results and output created by ML algorithms. Seven common impactful predictors in both the XGBoost model and MLP model were identified, including N class, sex, CRP, D-dimer, anemia, primary tumor location (sigmoid/rectum), and tumor grade. Tumor Nodes Metastases (TNM) stages of tumor lesions, sex, D-dimer and CRP are known risk factors for VTE, and there are more data to support their use in various cancer types (24). However, primary tumor location in the large bowel is a unique risk factor in CRC. While the prognostic value of primary tumor location for overall survival in CRC seems clear and consistent in reports in recent decades, the association between primary tumor location and VTE remains unclear. Our results showed that patients with a primary tumor site at the sigmoid/rectum had a higher risk of VTE than patients with other primary tumor sites. Since all patients in this study underwent CRC surgery at the primary tumor site with curative intent, we hypothesized that surgical factors may be implicated in postoperative VTE occurrence.
A previous study also suggested that postoperative venous thrombosis development in patients receiving colon and rectal surgery could be affected by surgical features, including resection site, use of laparoscopic surgery, and procedure time (25). In this study, more patients with VTE underwent laparoscopic surgery, with more tumors located in the right colon and sigmoid/rectum. To our knowledge, few studies have reported the association between surgical factors and postoperative VTE in CRC patients. However, an animal study and a human study suggested that laparoscopic surgery might promote portomesenteric venous thrombosis (PMVT) due to portal and mesenteric venous flow decline through insufflation of the abdomen and increased intra-abdominal pressure (26,27). Furthermore, a previous 1,224-patient study reported a higher incidence (10.8%) of PMVT in patients undergoing restorative proctocolectomy than in patients undergoing left (3.9%) and right (1.9%) colectomy (28). In our study, the incidence of VTE in patients undergoing proctectomy/proctocolectomy was 13.2%, higher than the incidence in patients undergoing left (7.2%), transverse (4.3%), and right (10.5%) colectomy, which was consistent with the previous study (28). Considering the different underlying mechanisms between PMVT and VTE (including DVT and PE), further investigation is warranted to validate the interaction between VTE and surgical factors in CRC patients.
Generally, SHAP works well on static features but not on dynamic time series features. In ML models accepting static features, each predictor was grouped as model input and model interpretation, which show correlations but not causality. In the present study, we attempt to apply the SHAP framework in the LSTM model. The dynamic data of the CRC patients were transformed into a n*11*78 size 3D matrix before entering the model. The contribution of continuous variables to model prediction was quantified by the mean absolute SHAP values, which were calculated at 11 time points (from preoperative 3 days to postoperative 7 days). The impact of WBC on the model output gradually increased over time from preoperative Day 2 to postoperative Day 6, which is consistent with previous reports in the literature (29). However, the influence of other dynamic variables was not significant, and there was no obvious trend.
Our study had potential limitations: (I) The study was performed in a single center. (II) Our study was a retrospective analysis of a consecutively collected colorectal cancer database. However, because of incorrect coding, there could have been missing individuals when identifying patients with VTE. (III) Although we found that some potential surgical factors had the potential to be used in postoperative VTE prediction in CRC patients, further research is required among different populations utilizing a larger study sample size.
This study shows that machine learning for predictive modeling is a novel approach to accurately predict the occurrence of VTE in surgical CRC patients. Furthermore, we developed an XGBoost model with high sensitivity and positive predictive value in the prediction of VTE occurrence, which might supply a complementary tool for clinical VTE prophylaxis decision-making in colorectal cancer. The proposed risk factors through model interpretation, such as surgical factors, could shed some light on VTE risk stratification in CRC patients.
